Maquinaria Lorenzana S.A.

TECHNICAL FEATURES

Engine:

CAT C4.4 ACERT STAGE III
CAT C3.6 STAGE V

Engine power:

106 Kw Stage III
100 Kw Stage V

Cabin:

ROPS - FOPS
180º Reversible

Weight :

6.500 Kg

Measurements:

7.700mm x 2.100nn x 2.550mm

Internal steering radius:

1.500mm

External steering radius:

4.900mm

Slope:

30 % S.A.E.

Brakes:

Service (oil bath) 4-wheel Multidisc
Parking 4-wheel negative

Water Tank:

270l

Oil Tank:

270l

Fuel Tank:

130l

Tyres:

10.00 R 20

Speed:

20 Km/h

Transmission:

Powershift

Vertical slope:

10.400mm

Horizontal scope:

8.700mm

Electric engine:

AEG (40 HP)

Remote control:

Yes

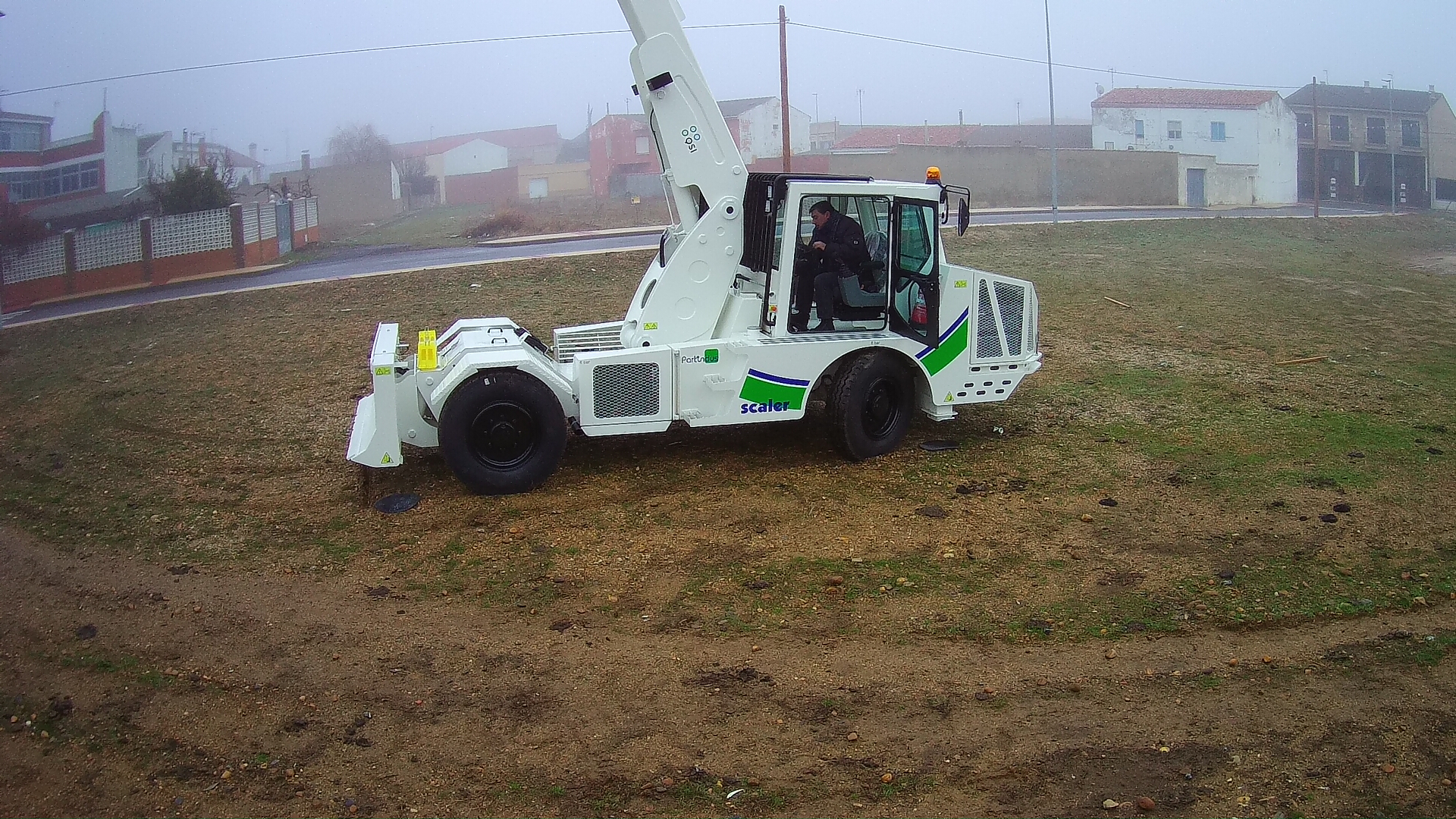

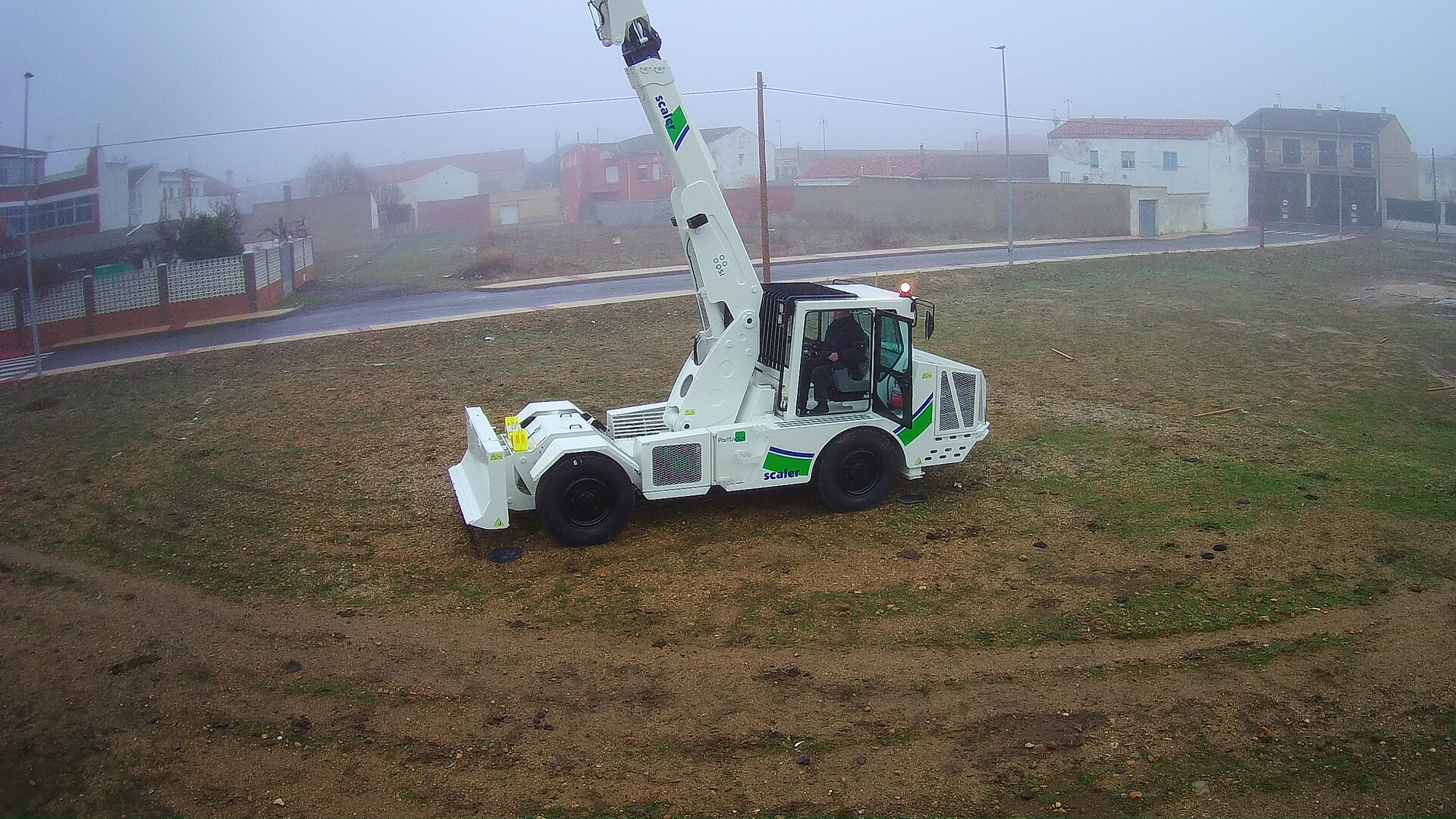

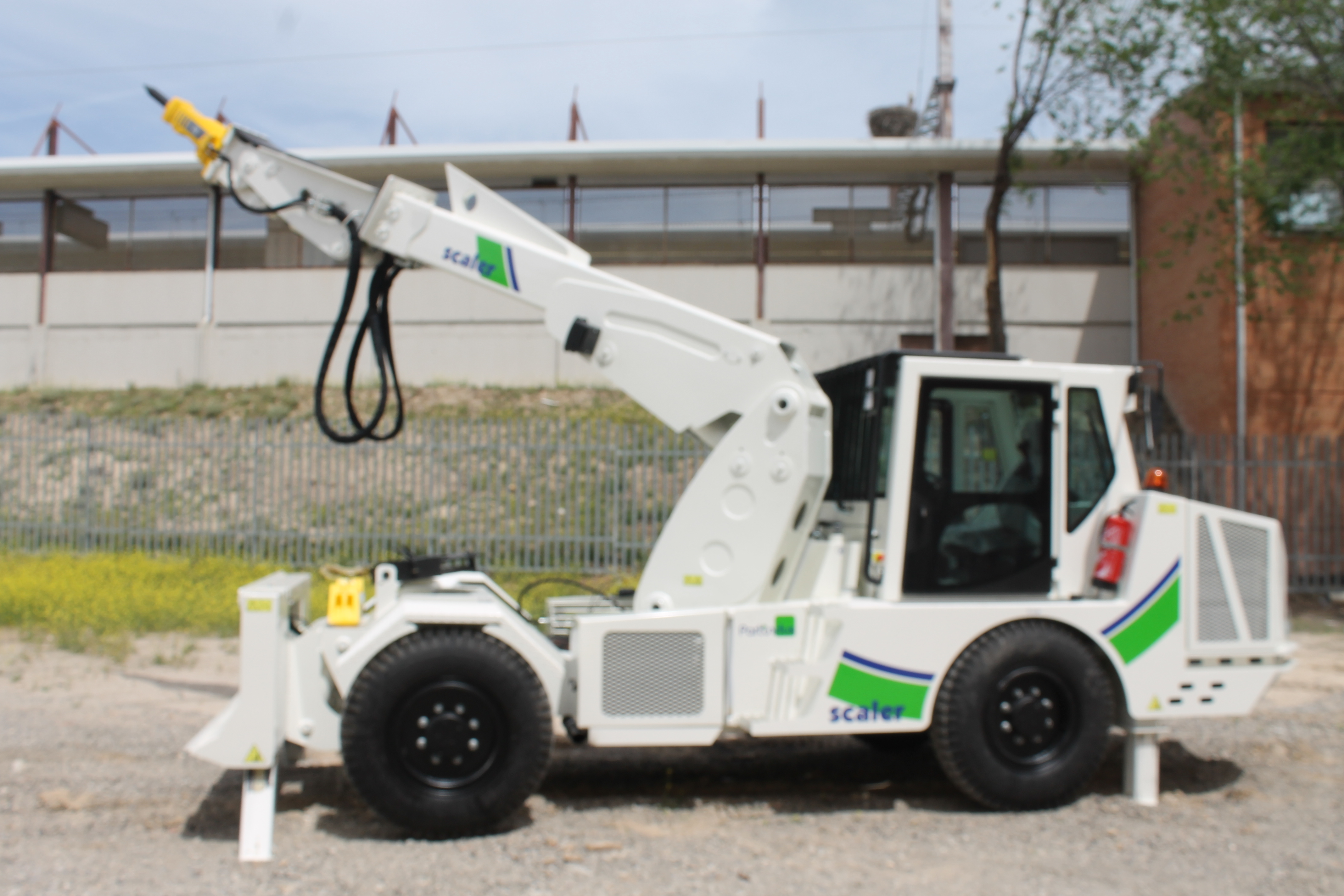

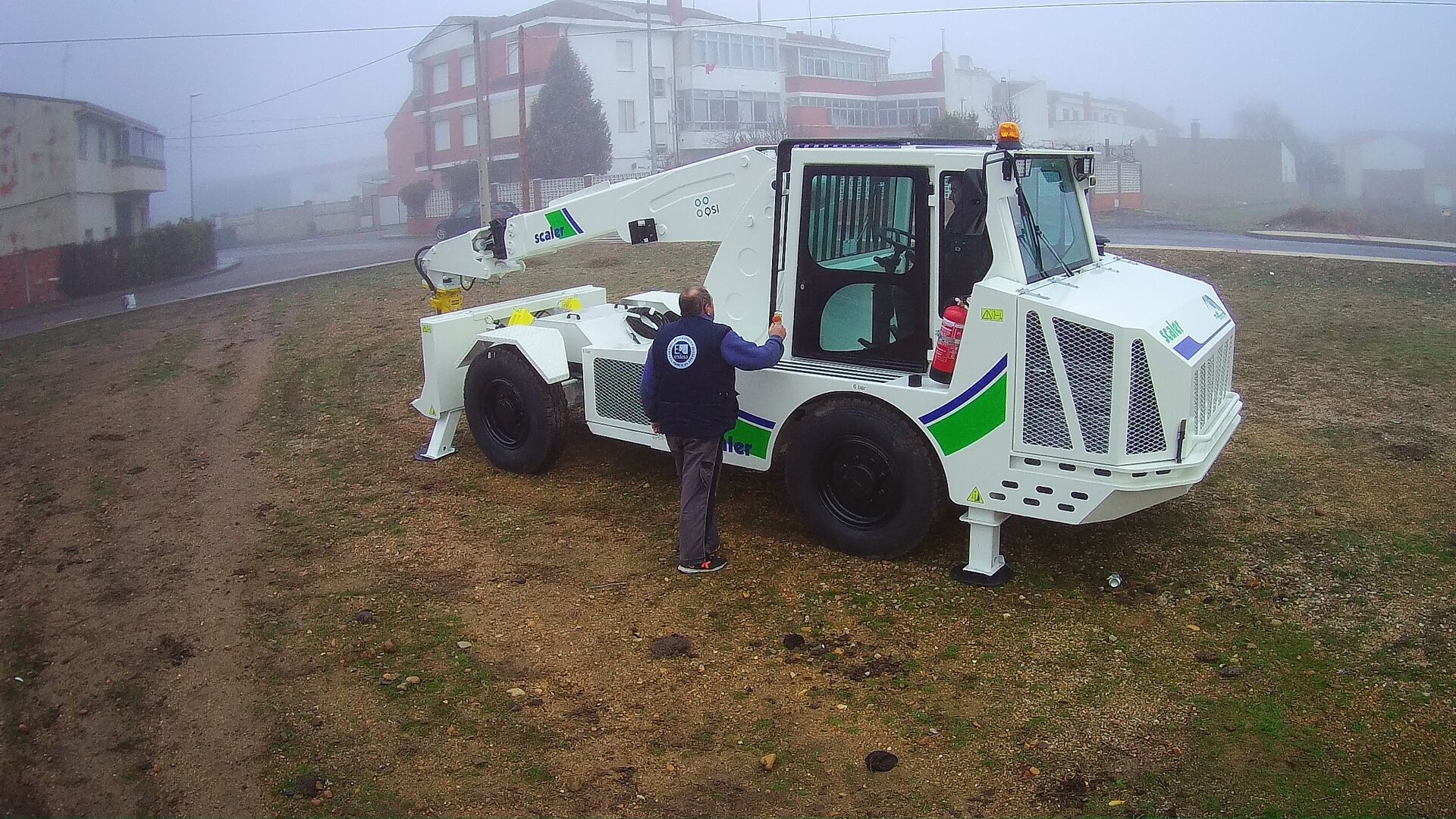

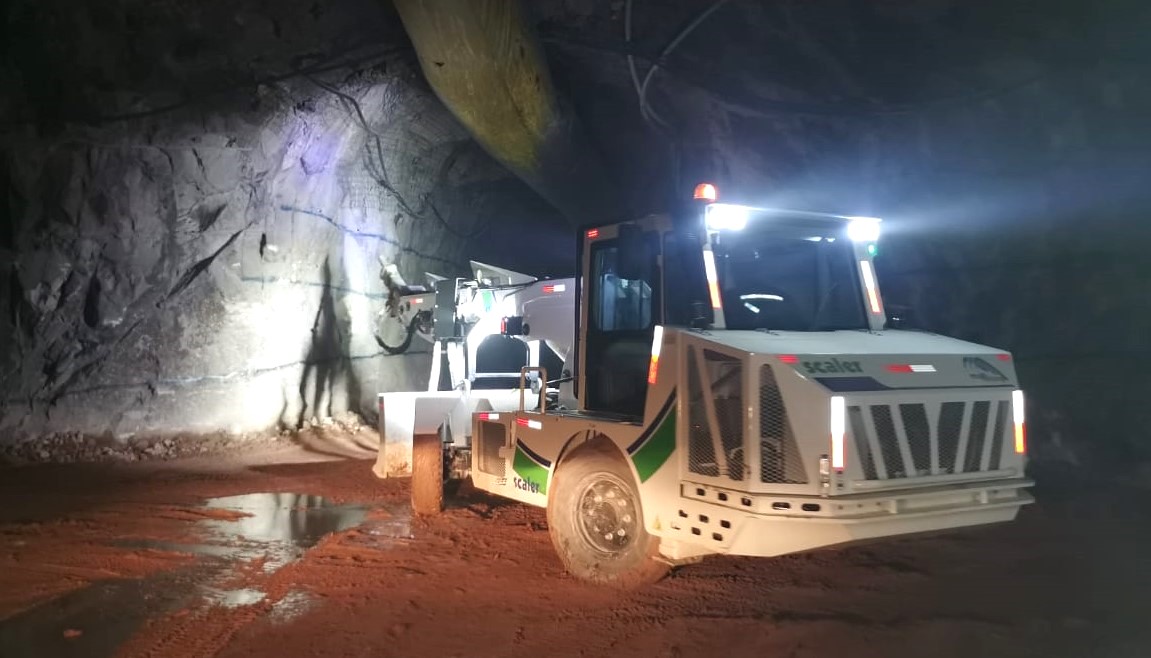

Our Scaler equipment is the answer to your need of clearing and cutting rocks in tunnels, galleries and mine sites of small-section tunnels.

Its telescopic boom with protected hydraulic cylinders inside the tubes, its quick-coupling system, its high-strength rock-breaker and the special design of the hydraulic hammer, together with its innovative design and its small dimensions, give it a high efficiency and large efficacy in all its maintenance works.
