TECHNICAL FEATURES

Engine:

CAT C4.4 ACERT STAGE III
CAT C3.6 STAGE V

Engine power:

106 Kw Stage III
100 Kw Stage V

Cabin:

Closed and heated
ROPS - FOPS

Measurements:

8.800x2.100x2.550

Internal steering radius:

2.150

External steering radius:

6.350

Slope:

30%

Cabin climate control:

Yes

Brakes:

Service (oil bath) 4-wheel Multidisc
Parking 4-wheel negative

Water Tank:

270l

Oil Tank:

270l

Fuel Tank:

170l

Compressor:

4 m3 / 8 bar

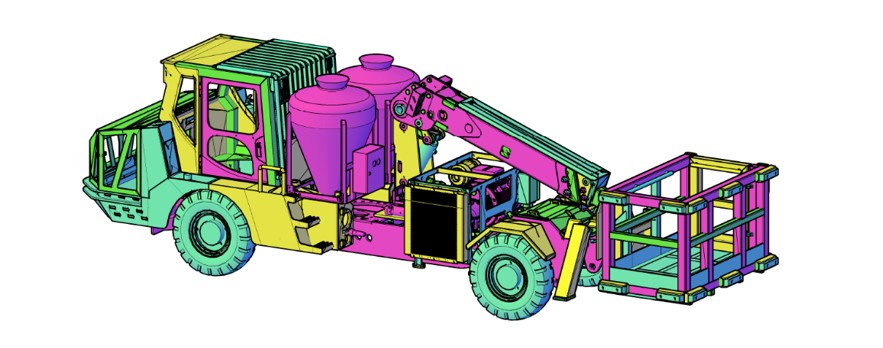

Anfo 1.000 of M. Lorenzana is a NAFO or Nagolite loader; versatile equipment for the use of explosives in tunnels and mining. Its great mobility, reduced dimensions, its loading and transport capacity, easy handling and the proven reliability of our equipment, give it unique features in the market.

The basket design allows a great working range of up to 5 meters horizontal and 11 meters height above the working plane.

It incorporates a 7 bar electric compressor with air intakes and controls for the injection of the nagolite and hose reel connected to the approved pressure tank, according to the current standard for pressure equipment.

The equipment has a load capacity of 1.000 liters of NAFO or Nagolite, with the possibility of incorporating a crane and basket that completes even more its usefulness in mining works.
